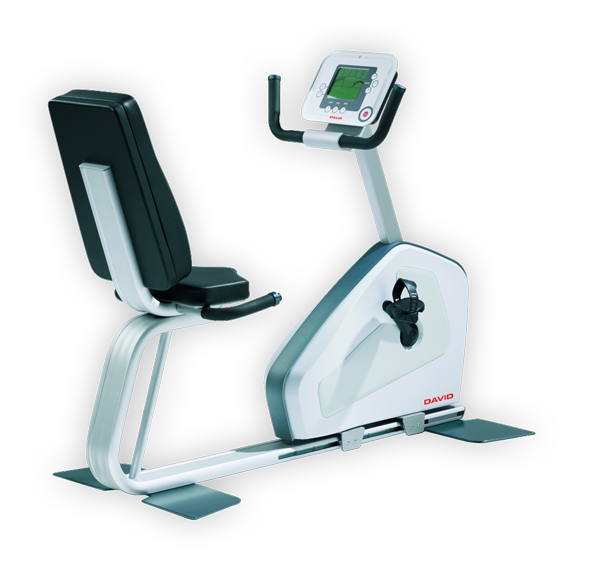

Cycle-Rec

Cycle-Rec

Dimensions (Width, Length, Height)

159/65/137 cm, 63/26/54 in
Weight

82 kg, 181 lbs
Certification

Medical version:

  • Medical-CE according to directive 93/42 EEC, class IIa
  • DIN EN957-1 SA
  • DIN EN957-5 SA
  • DIN EN 60601-1-2

Fitness version:

  • CE
  • DIN EN957-1 SA
  • DIN EN957-5 SA
  • DIN EN 60601-1-2
Programs
  • Quick start
  • Watt
  • Watt sensitive
  • Pulse
  • Isokinetic
  • Therapy
  • Interval
  • K-Cal
  • Hill
  • Random
  • Distance
Adjustments

Horizontal adjustment of crank arm body.
Speed range

40 - 120 rpm / min
Resistance
  • 25 - 500 watts (rpm independent)
  • 25 - 1000 watts (rpm dependent)
  • 5 watt steps
Environment

Maximum user weight:
150 kg, 331 lbs
Power

Self powered with no need for grid power
Features

Heart rate monitoring: Polar® pulse receiver
Options

Test program package:

  • IPN test
  • Astrand Test
  • PWC Test
  • Lactate test (supports measurement procedure)
  • Standart test
  • Conconi test

Hand pulse connection:
The metal leads in the grips can read the user’s heart rate while gripping them, without the need for a heart rate band.

Ear pulse connection:
Small clips can be attached to the ear that read the user’s heart rate during training, without the need for a heart rate band.

Adjustable crank arm:
Gives the possibility to adjust the radius of the pedals from the crack arm axis.

Head rest:
Optional head rest that will give support to the cervical spine during training.

User weight extension 250kg, 441 lbs:
Structural modifications to the frame of the bicycle to accommodate heavier users up to 250kg, 441 lbs. The extension includes the gas spring supported back rest adjustment (F-EF-MR-858) and in addition a turning seat for even easier entry

Serial connection:
Serial connection to ergospirometry systems:

Supported protocols:

  • Ergoline protocol (Recommended)
  • Expanded Cybex protocol
