G120 Lumbar / Thoracic Rotation machine
Mobilizes the lumbar/thoracic spine in the transversal plane activating the rotation muscles.
Exercise equipment for the spine
DAVID produces medically certified exercise equipment for the Spine. The overall goal of a successful spine treatment is that the experienced pain decreases and the quality of life increases. We collaborate with hospitals, physiotherapy centers, orthopedic clinics, wellness centers, and hotels.

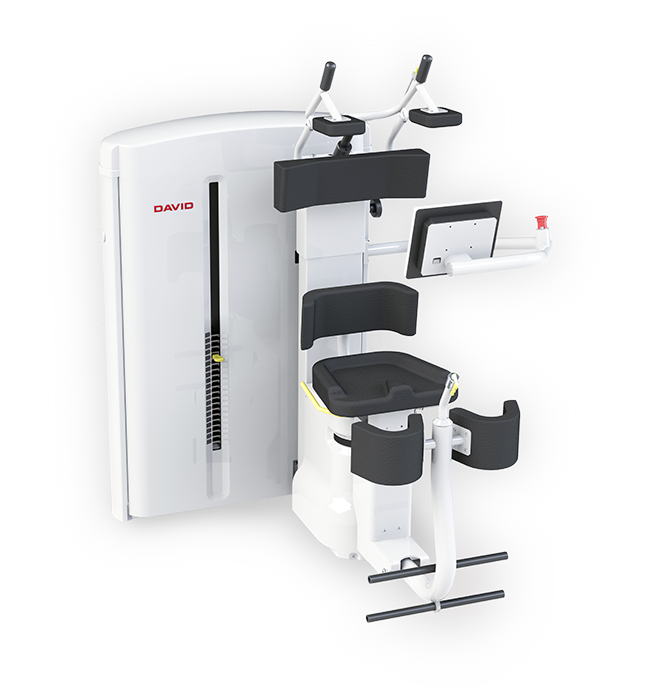

Lumbar / Thoracic Rotation Machine
Mobilizes the lumbar/thoracic spine in the transversal plane activating the rotation muscles. Effective upper and lower body fixations ensure isolated rotation movement.
- Entering the device is quick and easy
- Automatic shoulder fixation height adjustment (electronic version)
- Lower body is rotated while the upper body remains fixed
- Starting position adjustment in 10o intervals
- Precise resistance curve provides smooth, full range movement
- Movement is carried out in two directions
- EVE integration with strength and mobility tests
- Weight stack: 2,5/100 kg, 5.5/220 lbs
Target muscles
- Obliquus externus abdominis
- Obliquus internus abdominis
- Rotatores breves
- Rotatores longi
| Dimensions (Width, Length, Height) | 143/140/150 cm, 56/55/59 in |
|---|---|
| Weight | 338 kg, 744 lbs |
| GMDN Code | 61508 Core-body mechanical weight exerciser |
| Certification | Medical-CE device, class 1M |
| Adjustments | Range of motion: 10° degree steps Upper back support: Step-less with an actuator (electronic), 1-9 step-less (manual) Knee support: Step-less |
| Isometric torque measurement points | -80°, -70°, -60°, -50°, -40°, -30°, 20°, 10°, 0°, 10°, 20°, 30°, 40°, 50°, 60°, 70°, 80° |
| Power | Power (idle / actuators with load): ~36W (~0.15A) / up-to 140W (~0.6A) |
| Weight stack | 2.5/100 kg, 5.5/220 lbs |
