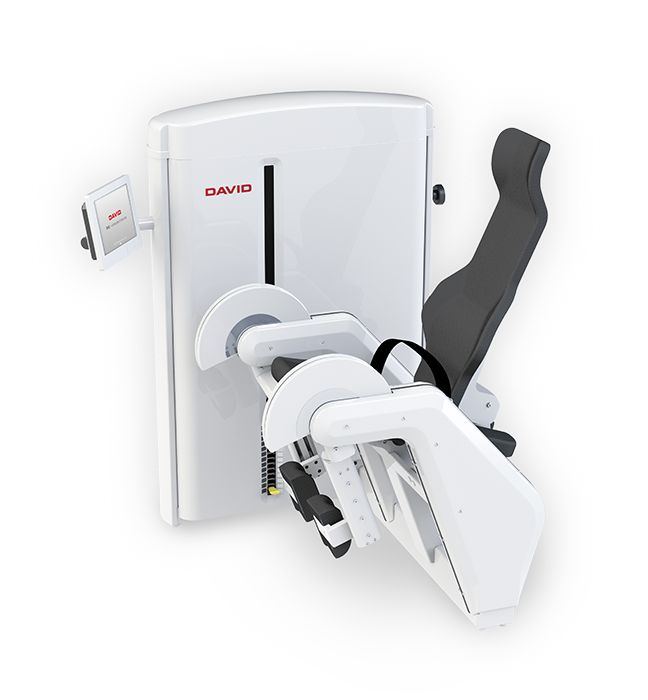

G200 Knee Extension Device

A versatile device for the knee extension machine. The unique resistance curve provides a smooth and pleasant training experience even for painful knee problems. Highly effective and safe.

Exercise equipment for the knee

DAVID produces medically certified exercise equipment for the hip and knee. David Hip & Knee Solution is a key to manage the challenges set by an aging population and to improve surgery outcomes with pre- and post-operative treatment programs. We collaborate with hospitalsphysiotherapy centersorthopedic clinicswellness centers, and hotels.

Find your distributor

G200 Knee Extension Device

Knee Extension

A versatile device for the knee extension. The unique resistance curve provides a smooth and pleasant training experience even for painful knee problems. Highly effective and safe.

  • Automatic back support adjustment (electronic version)
  • Self-adjusting ankle cushions
  • Range of motion adjustment to accommodate various users
  • Easy entry / exit
  • Training with one or two legs
  • Suitable for both rehabilitation and sports training
  • Scientifically validated resistance curve
  • EVE integration with strength and mobility tests
  • Weight stack: 2,5/50 kg + 5/100 kg = 150 kg

Target muscles

  • Vastus medialis
  • Vastus lateralis
  • Vastus intermedius
  • Rectus femoris
Click to rate this post!
[Total: 0 Average: 0]
Muscle man G200 Knee-Extension
Dimensions (Width, Length, Height)

117/134/139 cm, 46/53/55 in

Weight

350 kg, 770 lbs

GMDN Code

35144

Certification

Medical-CE device, class 1M

Adjustments

Range of motion adjustment: 1-8 steps 115°- 80° (w. weight selector no-limits)

Seat back adjustment: automatic (electronic), 11 steps (manual)

Ankle cushion adjustment: self adjusting

Isometric torque measurement points

0°,30°, 60° and 90°

Power

Voltage: 110/240V 50/60Hz

Power (idle / actuators with load): ~36W (~0.15A) / up-to 140W (~0.6A)

Weight stack

2.5/50 kg + 5/100 kg = 150 kg, 5.5/110 lbs + 11/220 lbs = 330 lbs
