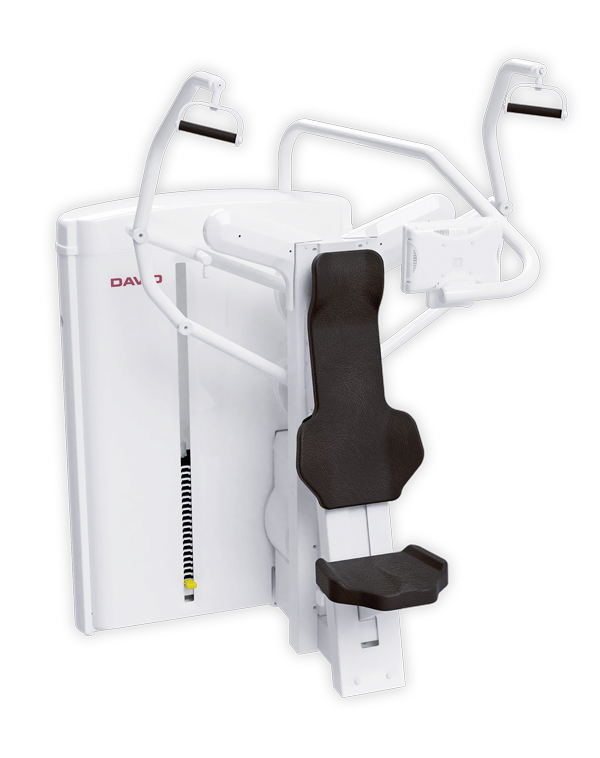

G420 Pulldown Machine

Unique multi-joint exercise equipment for the upper body.

Exercise equipment for the upper body

DAVID produces medically certified exercise equipment for the upper body. The new generation in rehabilitation technology for hospitals, physiotherapy centers, orthopedic clinics, wellness centers, and hotels. The equipment is equipped with EVE (eValuated exercise ) software for monitoring client results and site management.

Find your distributor



G420 Pulldown Machine

Pulldown Machine

Unique multi-joint exercise machine for upper body.

  • Optimal joint angles
  • From wide to narrow movement arm trajectory
  • Free handles
  • Scapular plane movement
  • Automatic seat height adjustment
  • EVE integration with strength and mobility tests

Main target muscles

  • Latissimus dorsi
  • Trapezius
  • Rhomboideus minor
  • Rhomboideus major
  • Biceps brachii
  • Teres major
  • Pectoralis minor
Muscle man G420
Dimensions (Width, Length, Height)

116/143/159 cm, 46/56/63 in
Weight

350 kg, 770 lbs
GMDN Code

44231
Certification

Medical-CE device, class 1M
Adjustments

Seat height: automatic
Isometric torque measurement points

31, 37, 42 cm/ 12, 14, 17 in
Power

Voltage: 110/240V 50/60Hz
Power (idle / actuators with load): ~36W / up-to 150W
Weight stack

2,5/100 kg, 5.5/220 lbs
