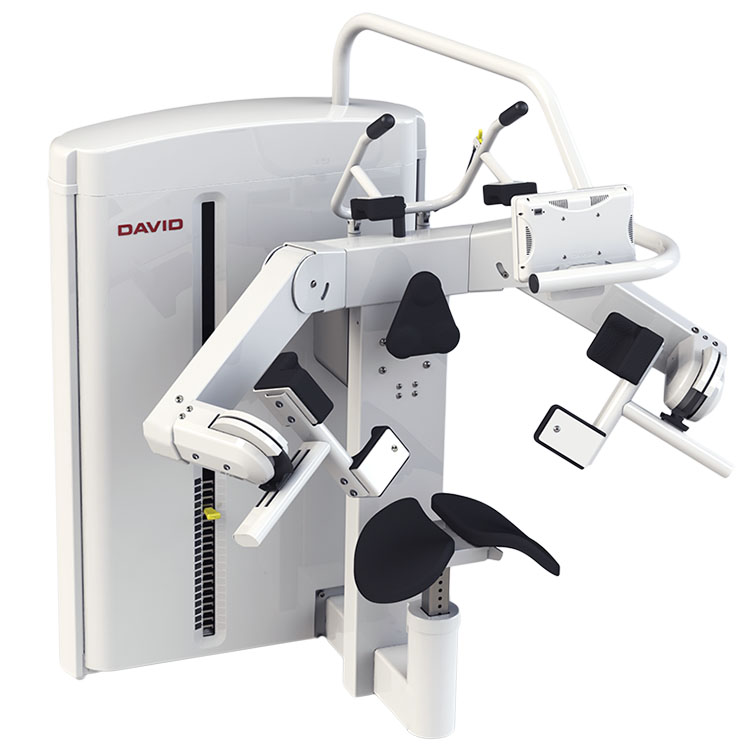

G660 Glenohumeral External Rotation Device

Pure isolated external rotation exercise for the shoulder. Optimized joint angles (scapular plane) enable effective treatment of a painful joint.

Request a Quote

Guiding and motivation

In each device, a computer terminal guides and motivates the patients to follow exactly the given parameters prescribed in their individualized exercise programs.

Shoulder video

Glenohumeral External Rotation Device

Pure isolated external rotation exercise for the shoulder. Optimized joint angles (scapular plane) enable effective treatment of a painful joint.

  • Automated seat adjustment and self-adjusting movement arms
  • Scapular fixation blocks unwanted movements of the scapula
  • Controlled movement and optimal resistance curve ensure safe and effective movement
  • Suitable for a variety of people, from elderly people to athletes
  • Training with one or two arms
  • Abduction angle can be lowered for early stage rehabilitation
  • Easy to use, minimum supervision required
  • EVE integration with strength and mobility tests
  • Weight stack: 1/20 kg + 2,5/50 kg = 70 kg

Target muscles

  • Infraspinatus
  • Teres minor

Glenohumeral External Rotation Device

Glenohumeral External Rotation Device
Dimensions (Width, Length, Height)

142 × 143 × 159 cm (55.9 × 56.3 × 62.6 in)

Weight

278 kg (613 lb)

GMDN Code

44231 Upper-limb mechanical weight exerciser, lever/pulley-cable

Certification

Medical CE device, class Im (MDD 93/42/EEC); EN 957-1, EN 957-2, IEC EN 60601-1, IEC EN 60601-1-2

Adjustments

Seat height: automatic
Arm length: automatic
Back support: 3 steps, manual

Isometric torque measurement points

−15°, 0°, 15°, 30°, 60°, 90°

Product Codes

EUDAMED ID code: D-FIMF0000039869G66607CUY

Environment

Operating: 15–35 °C (59–95 °F), 10–85% RH non-condensing. Storage: −20–70 °C (−4–158 °F), 5–90% RH non-condensing

Power

110/240 V 50/60 Hz; ~36 W idle / up to 150 W with actuators under load

Weight stack

0–20 kg in 1 kg steps, 20–70 kg in 2.5 kg steps (0–44 lb / 44–154 lb)
