G300 Knee Flexion Device

The device movement is a safe and effective exercise for the knee joint, targeting the flexor muscles. The exercise is performed in a comfortable seated position. The range of loading accommodates early rehabilitation as well as strength training.

Contact Sales Support

Scientific evidence

Our unique variable resistance method was examined in the set of studies under the supervision of Professor Paavo Komi, comparing David to other methods and using EMG to validate the correctness of the loading curves and efficacy of training. Outcomes were very clear: the David variable principle was indeed optimal and had a great fatiguing effect on muscles.

Watch the Video

Knee Flexion

The device movement is a safe and effective exercise for the knee joint, targeting the flexor muscles. The exercise is performed in a comfortable seated position. Range of loading accommodates early rehabilitation as well as strength training.

  • Automatic back support adjustment (electronic version)
  • Self adjusting ankle cushions
  • Range of motion adjustment (RMA) to accommodate various users
  • Easy entry / exit
  • Seat belt for additional stability during exercise
  • Training with one or two legs
  • Suitable for both rehabilitation and sports training
  • Scientifically validated resistance curve
  • EVE integration with strength and mobility tests
  • Weight stack: 2,5/50 kg + 5/100 kg = 150 kg

Target muscles

  • Gluteus Maximus
  • Biceps Femoris
  • Semimembranosus
  • Semitendinosus

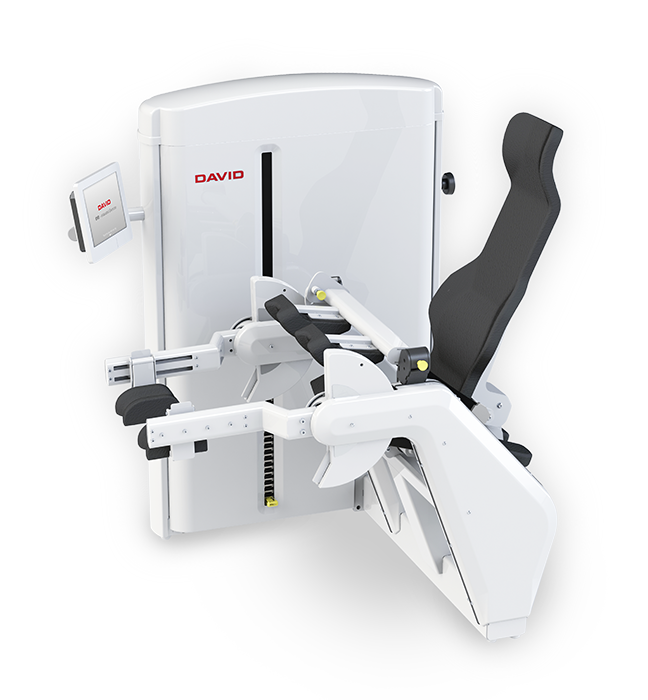

Knee flexion device

G300_KneeFlextion-01-300×368
Dimensions (Width, Length, Height)

117/134/139 cm, 46/53/55 in

Weight

373 kg, 822 lbs

GMDN Code

35144

Certification

Medical-CE device, class 1M

Adjustments

Seat back adjustment: automatic (electronic), 1-11 gradual (manual)

Ankle cushion adjustment: self adjusting

Knee support: 1-5 gradual

Isometric torque measurement points

30°, 60° and 90°

Product Codes

EUDAMED ID code: D-FIMF0000039869G30605CRH

Weight stack

2.5/50 kg + 5/100 kg steps, 5.5/110 lbs + 11/220 lbs steps
