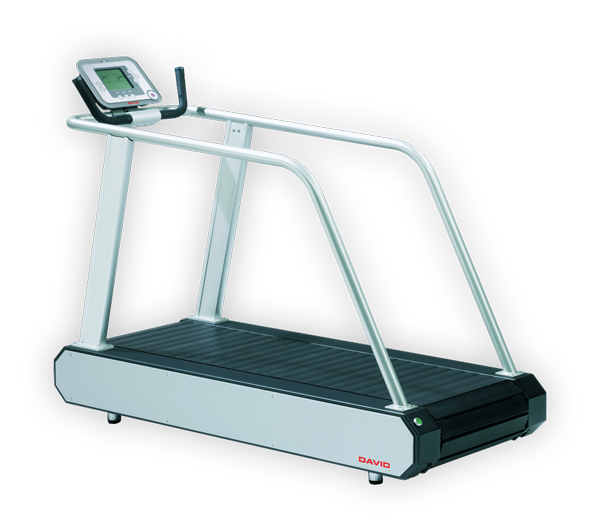

Treadmill

The DAVID cardio equipment is equipped with a display that connects to the EVE software. This makes it possible to perform (maximum and submaximal) tests and to compose various interval training sessions based on the heart rate.

Cardio equipment

DAVID produces cardio equipment. We collaborate with hospitals, physiotherapy centers, orthopedic clinics, wellness centers, and hotels. The equipment is equipped with EVE (eValuated exercise) software for monitoring client results and site management.

Find your distributor

Treadmill

Treadmill

Dimensions (Width, Length, Height)

172/74/115 cm, 68/29/45 in
Weight

190 kg, 419 lbs
Certification

Medical version:

Medical-CE according to directive 93/42 EEC, class IIa

  • DIN EN957-1 SA
  • DIN EN957-5 SA
  • DIN EN 60601-1-2

Fitness version:

CE

  • DIN EN957-1 SA
  • DIN EN957-5 SA
  • DIN EN 60601-1-2
Programs
  • Quick start
  • Watt
  • Watt sensitive
  • Pulse
  • Isokinetic
  • Therapy
  • Interval
  • K-Cal
  • Hill
  • Random
  • Distance
Adjustments

Incline range: 0 – 15% (medical version), -3 – 12% (fitness version)
Speed range

0 - 17 km/h in 0.1 km/h steps

(up-to 1m precise odometer)
Environment

Maximum user weight: 150 kg, 331 lbs

Noise: < 75 dBa

Temperatures:

  • +10 to 45 ° C (Operation)
  • 0 to 45° C (Storage)

Protection: IP44
Power

230V 50/60Hz (5 Ampere)

Fuses:

  • 3 x 6,3A anti-surge
  • 2 x 10A

Discharge current:

< 0,5 mA
Features

Heart rate monitoring:

Polar® pulse receiver (Not included)

Walking surface:

  • Lamella system
  • L x W 155cm x 50 cm, 61 in x 20 in
  • Step height 28 cm, 11 in

Drive:

4-Q-steering with inclination and direct current motor 1,3 KW
Options

Test program package:

  • IPN test
  • Astrand Test
  • PWC Test
  • Lactate test (supports measurement procedure)
  • Standart test
  • Conconi test

Hand pulse connection:

The metal leads in the grips can read the user’s heart rate while gripping them, without the need for a heart rate band.

Ear pulse connection:

Small clips can be attached to the ear that read the user’s heart rate during training, without the need for a heart rate band.

User weight extension 250kg, 551 lbs:

Structural modifications to the frame and motor of the treadmill to accommodate heavier users up to 250kg, 551 lbs.

Bi-directional belt drive:

  • Possibility to also drive the treadmill backwards.
  • The weight limitation in backward motion is 120kg, 265 lbs even with the weight extension.
  • The maximum speed backwards is 10 km/h.
  • EVE -system does not support backward programs at the moment.

Speed increase to 22 km/h:

Structural re-enforcements to the frame and a more powerful motor to support running speeds up-to 22 km/h.

Easy-entry platform:

Platform for easy entry to the treadmill

Armpit support:

Supports that can be adjusted to carry part of the users weight under the users armpit. For rehabilitation use.

Serial connection:

Serial connection to ergospirometry systems:

Supported protocols:

  • Ergoline protocol (Recommended)
  • Expanded Cybex protocol
  • Trackmaster protocol
